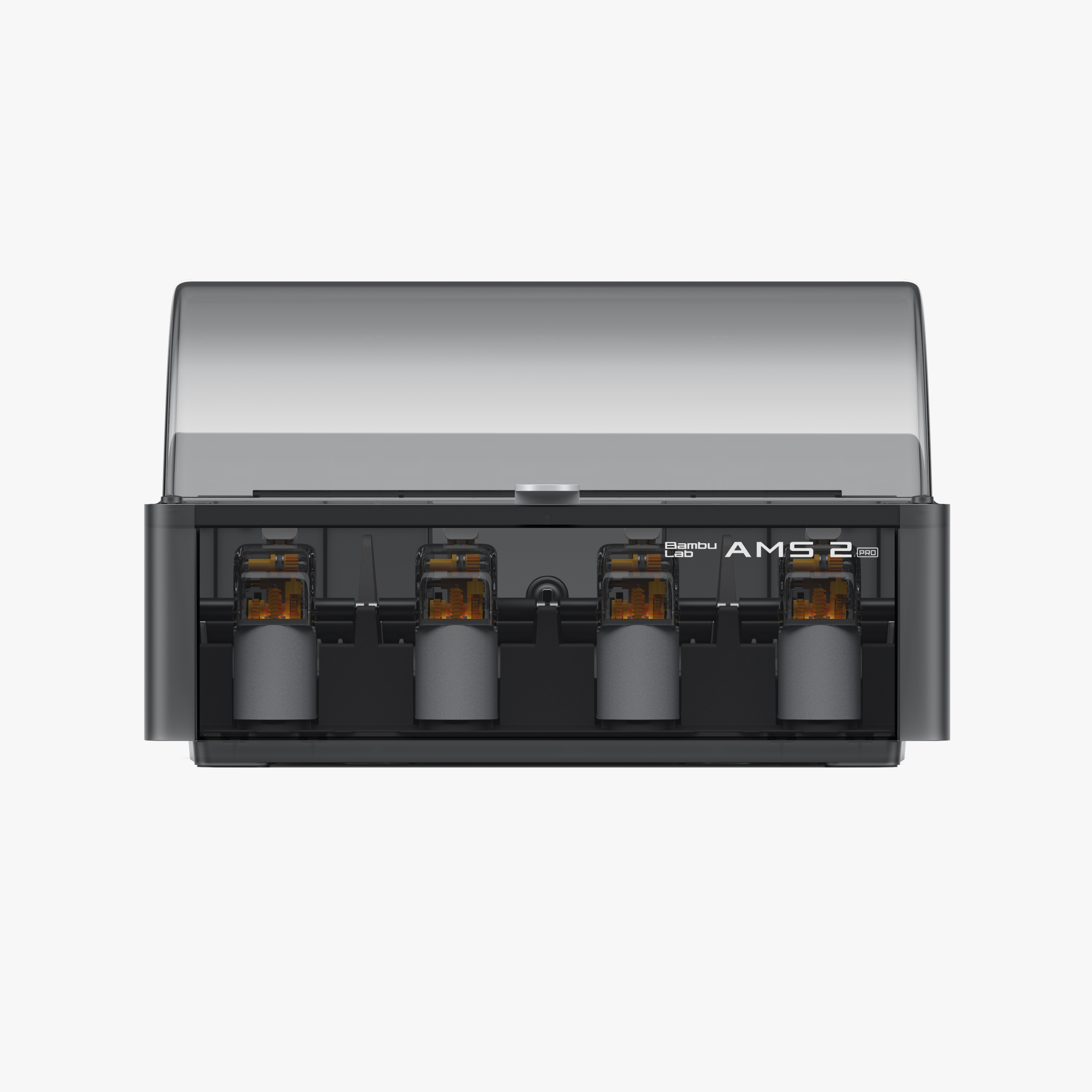

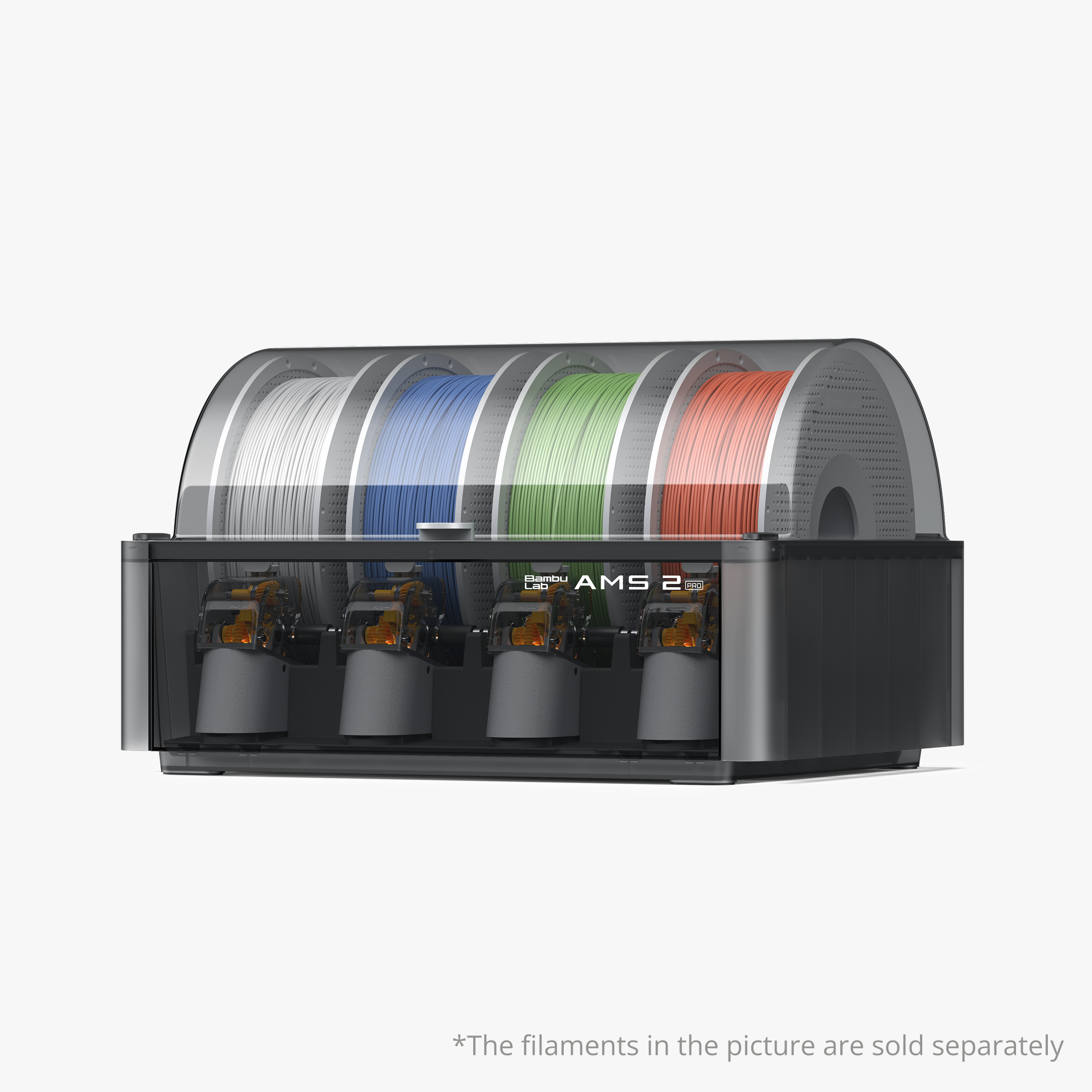

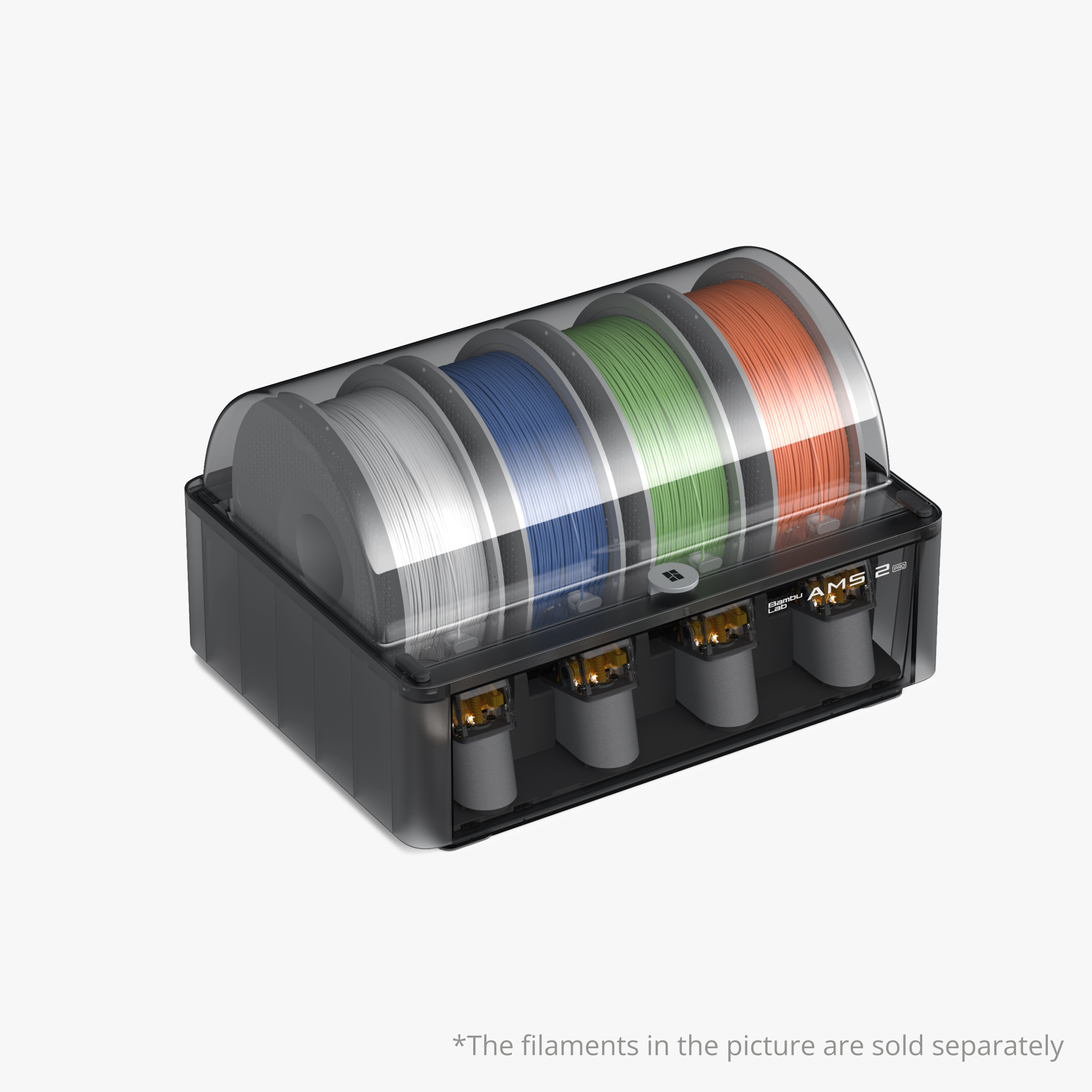

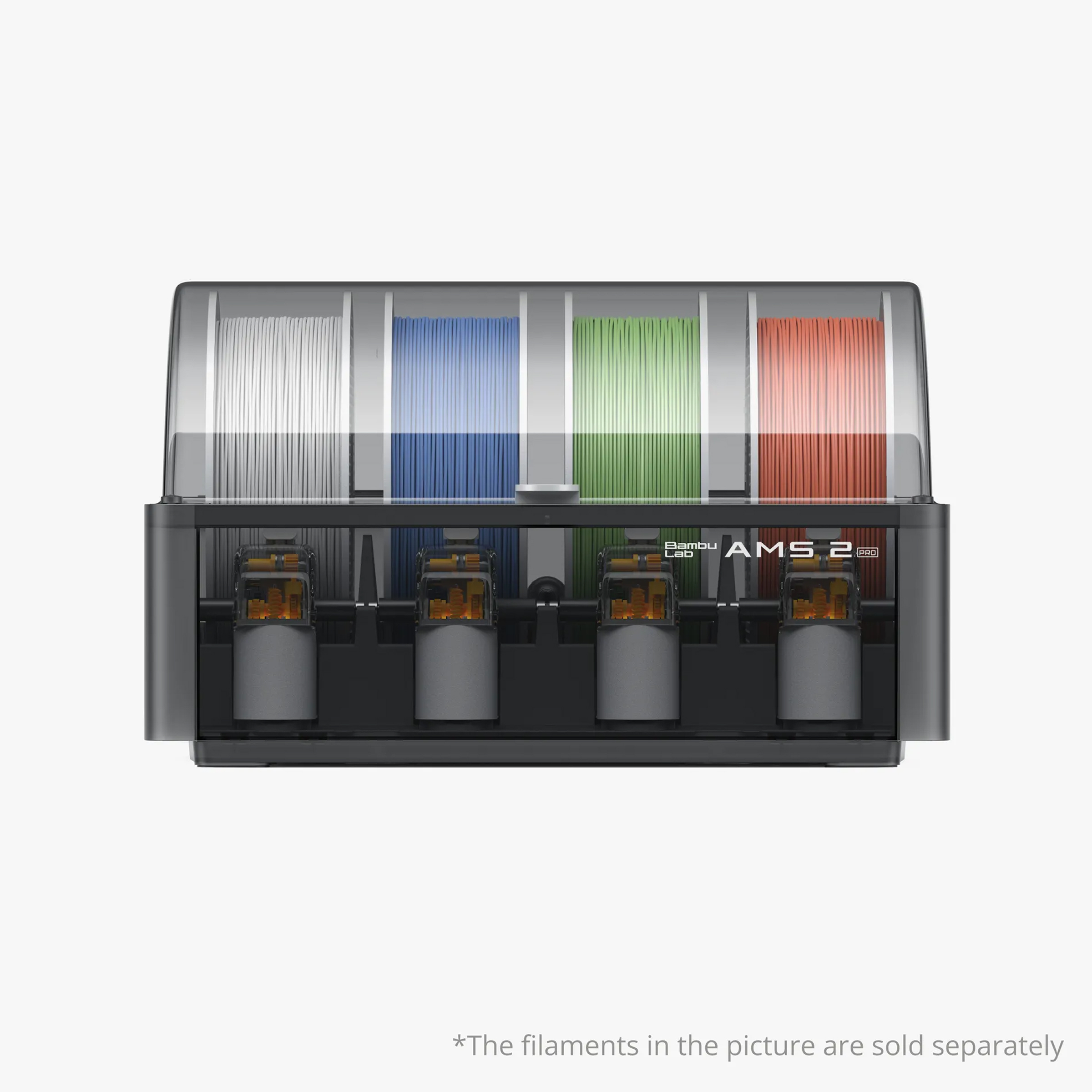

Bambu Lab AMS 2 Pro - Automatic Material System
HK$2,799.00
結賬時計算運費
數量
Product Features
- Active Air Vent 65°C Filament Drying
- Air-tight Filament Storage
- Up to 24-color/Multi-material Printing
- Brushless Servo Feeding Motor
- RFID filament sync
Important notice
- The AMS requires specific accessory configurations for various Bambu Lab 3D printers.
- All accessories mentioned in the description need to purchase separately.
- See the Multiple AMS Units Connection Guide for detailed setup instructions.
- Upgrade Kit with Hub/A1 Hub Buffer (220v): Applicable to China Hong Kong, China Macau, Singapore, Malaysia and Thailand
- Upgrade Kit with Hub/A1 Hub Buffer (110v): Applicable to China Taiwan
Description
1. For A1 series Owner：
To connect AMS 2 Pro unit(s) to A1 series printer, an A1 series AMS Hub (SA013) is required.
A1 series printer can connect up to 4 AMS units (including AMS HT, AMS, AMS 2 Pro).
Note: AMS lite cannot be used in combination with other AMS units.
For drying function:
One Switching Adapter is required for each AMS 2 Pro unit.
2. For X1/P1 series Owner：
To connect a single AMS 2 Pro unit to X1/P1 series printer, a Filament Buffer (SA003) or AMS Hub (SA002-N), a PTFE Tube Coupler (FAZ006), and a 4-pin Cable (CAB002-N) are required.
To connect multiple AMS 2 Pro units, an AMS Hub (SA002-N), a PTFE Tube Coupler (FAZ006), and a 4-pin Cable (CAB002-N) are required.
X1/P1 series printer can connect up to 4 AMS units (including AMS HT, AMS, AMS 2 Pro).
For drying function:
One Switching Adapter is required for each AMS 2 Pro unit.
3. For P2S Owner：
To connect one or two AMS 2 Pro unit(s) to P2S, a P2S Filament Buffer (SA011) is required.
To connect more than two AMS 2 Pro units, a P2S Filament Buffer (SA011) and a 4-in-1 PTFE Adapter(s) (FAZ013-N) are required.
P2S printer can connect up to 4 AMS units (including AMS, AMS 2 Pro) and 4 AMS HT units.
For drying function:
P2S printer can power one AMS 2 Pro unit for drying without the switching adapter.
To dry filaments in multiple units simultaneously, each additional AMS 2 Pro unit requires its own Switching Adapter.
4. For H2S Owner：
To connect more than one AMS 2 Pro units to H2S, a 4-in-1 PTFE Adapter(s) (FAZ013-N) are required.
To connect a single AMS 2 Pro unit, no extra accessory is required.
H2 series printer can connect up to 4 AMS units (including AMS, AMS 2 Pro) and 8 AMS HT units.
For drying function:
H2S printer can power one AMS 2 Pro unit for drying without the switching adapter.
To dry filaments in multiple units simultaneously, each additional AMS 2 Pro unit requires its own Switching Adapter.
5. For H2D/H2C Owner：
To connect more than two AMS 2 Pro units to H2D/H2C, a 4-in-1 PTFE Adapter(s) (FAZ013-N) are required. For better performance, we recommend 4-in-1 PTFE Adapter II (SA014) for H2C.
To connect one or two AMS 2 Pro unit(s), no extra accessory is required.
H2 series printer can connect up to 4 AMS units (including AMS, AMS 2 Pro) and 8 AMS HT units.
For drying function:
H2 series printer can power one AMS 2 Pro unit for drying without the switching adapter.
To dry filaments in multiple units simultaneously, each additional AMS 2 Pro unit requires its own Switching Adapter.
6. For X2D Owner：
Connect 1 or 2 AMS 2 Pro unit(s)
To connect one or two AMS 2 Pro unit(s), no extra accessory is required. X2D series printer can connect up to 4 AMS units(including AMS, AMS 2 Pro) and 8 AMS HT units.
For drying function:H2 series printer can power one AMS 2 Pro unit for drying without the switching adapter. To dry filaments in multiple units simultaneously, each additional AMS 2 Pro unit requires its own Switching Adapter.
Connect 3 or more AMS 2 Pro units
To connect 3 or more AMS 2 Pro units, a 4-in-1 PTFE Adapter(s) (FAZ013-N) is required. X2D series printer can connect up to 4 AMS units(including AMS, AMS 2 Pro) and 8 AMS HT units.
For drying function:One Switching Adapter is required for each AMS 2 Pro unit.
7. For A2L Owner：
Connect 1 AMS 2 Pro unit
To connect one AMS 2 Pro, no extra accessory is required.
A2L series printer can connect up to 4 AMS units (including AMS, AMS 2 Pro and AMS HT) and 1 AMS lite.
Connect 2 or more AMS 2 Pro units
To connect more than one AMS 2 Pro units to A2L, 4-in-1 PTFE Adapter(s) (FAZ013-N) are required.
A2L series printer can connect up to 4 AMS units (including AMS, AMS 2 Pro and AMS HT) and 1 AMS lite.
For drying function:
One Switching Adapter is required for each AMS 2 Pro unit.
Please check "What's in the box" section below. Some accessories are included, you may purchase extra as needed.
